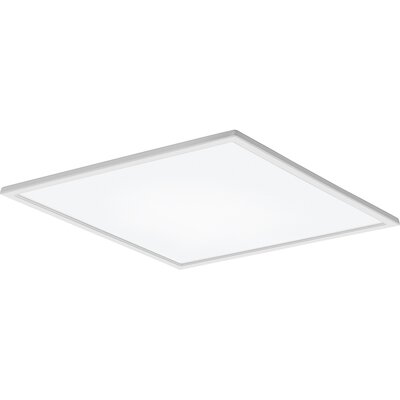

Lithonia EPANL 2X2 3400LM 80CRI 40K MIN10 ZT MVOLT 30W LED Flat Panel
Item No:
CB-0234456
Ships Direct from Manufacturer
CB Value
Score
4.3
Score
Product Information
Part Number
EPANL 2X2 3400LM 80CRI 40K MIN10 ZT MVOLT
Brand
Lithonia
UPC
00190887602678
Category
Fixtures
Sub-Category
Flat Panel
Specs
Technology
LED
Application
Drywall Mount / Suspended
IP Rating
Damp
Bulb Shape
-
Troffer Size
2x2
Fixture Shape
-
Downlight Size
-
Style
Flat Panel
Emitted Color
Cool White
Wattage
30 W
Lamp Base
-
Input Voltage
120 V - 277 V
Color Temperature
4000K
Finish Type
White
Number of Bulbs
-
Lumens
3566
Hours
60000
Beam Angle Type
Wide Angle
Beam Spread
110°
CRI
80
Dimmable
Yes
Indoor Use
Yes
Outdoor Use
Yes
Equivalent Wattage
-
Bulb Finish
Frosted Lens
Dimensions
Max Overall Length
24"
Height
2.38"
Description
The Lithonia EPANL-2X2-3400LM-80CRI-40K-MIN10-ZT-MVOLT LED edge-lit flat panel provides a fully illuminated appearance across the lens that provides a soft, glare-free comfortable solution for any space. The EPANL LED series flat panel is reliably built with an aluminum frame that prevents light leaks in the corners. This LED Flat panel emits 3566 lumens with a 4000K color temperature while using up 30 watts. EPANL LED flat panels have an LED life rate of 60,000 hours making them an ideal LED solution to mount in schools, offices, retail convenience stores, hospitals and healthcare facilities.
- Listed to be mounted in damp locations
- IC Rated
- IP5X
- Fixture can be mounted and wired in continuous rows
- 0-10V dimmable LED flat panel
- Color temperature 4000K
- 2x2 LED flat panel
EPANL 2X2 3400LM 80CRI 40K MIN10 ZT MVOLT
LED flat panel, 2x2, Nominal 3400 lumens, 4000K, SKU - 247U4X
