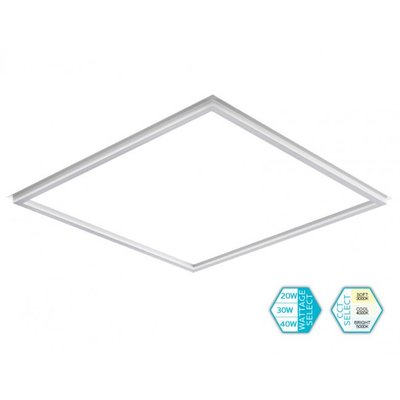

Luxrite LR24164 20W/30W/40W LED Frame Panel Dimmable Fixture 2X2 FRAME

Item No: CB-0228925
Price: $85.00 per fixture
In Stock - Ships Next Business Day
Chicago Warehouse: 23 availableShips Next Business Day
Mfr. Stock: Usually ships in 3 - 5 business days
CB Value
Score
4.4
DLC Listed ETL Listed

Product Information

Part Number
LR24164
Brand
Luxrite
Product Code
LED2X2FRAME/PNL/3WO/5CCT/D
UPC
793888418646
Category
Fixtures
Sub-Category
Frame Light


Specs

Technology
LED
Application
2x2 Frame
IP Rating
IP40
Bulb Shape
-
Troffer Size
2x2
Fixture Shape
Square
Downlight Size
-
Style
Frame Panel
Emitted Color
CCT
Wattage
20 W / 30 W / 40 W
Lamp Base
-
Input Voltage
100 V - 277 V
Color Temperature
3000K / 3500K / 4000K / 5000K / 6500K
Finish Type
White
Number of Bulbs
-
Lumens
2600 / 3900 / 5200
Hours
50000
Beam Angle Type
Wide Beam
Beam Spread
120°
CRI
80
Dimmable
Yes
Indoor Use
Yes
Outdoor Use
-
Equivalent Wattage
-


Dimensions

Max Overall Length
24"
Length
23.7"
Width
23.7"
Height
0.5"


Description

Luxrite Slim Panel LED Frame Light - Enjoy the best of an adjustable light fixture with these thin LED light panels which you can switch between 5 different colors when determining how you want your space to look. Choose between 3000K soft white, 3500K natural white, 4000K cool white, 5000K bright white, and 6500K daylight until you find the perfect fit. Not enough light in your space? There is an additional switch that can allow you to adjust to a higher wattage and increase the light output which will better illuminate your space which is beneficial if you do not plan to use a dimmer. The wattage choices available in each LED panel light is 20W = 2600 lumens, 30W = 3900 Lumens, and 40W = 5200 Lumens. Brighten your home or office with an ultra-thin lighting solution that replaces the typical panel light. Constructed with a modern, edge lighting design makes it lightweight and easy to handle. With use in your grid ceiling, each light panel provides optimal lighting while having lower power consumption. The frame lighting design allows for even and consistent light distribution over a larger surface area. Every light fixture can also be used with a 0-10V dimmer to smoothly move to a light output of your choice for a pleasant atmosphere. Provide quality indoor and outdoor lighting with a panel light that is damp rated for reliability, IC air tight insulation contact safe and ETL Listed, DLC premium rated, 100V to 277V hardwire capable, and backed by a 5 YEAR WARRANTY.

  • 5-color tunable - enjoy the convenience of an led light panel that offers selectable white lighting with 5 different color settings to choose from with the attached 5 CCT adjustable switch on the j-box, you can effortlessly transition between 3000k soft white, 3500k natural white, 4000k cool white, 5000k bright white, and 6500k daylight tailor the ambiance to your preferences and adjust your lay-in led panels until you find the perfect light for your space
  • Flexible wattage settings - enhance your 2 x 2 led drop ceiling lights with a range of wattage options, including 20-watts, 30-watts, or 40-watts transition to a wattage option that will fit your room with just the right amount of light selecting 20-watt yields 2600 lumens, while 30-watt delivers a radiant 3900 lumens, and 40-watt provides an impressive 5200 lumens of vibrant lighting an ideal feature if you prefer not to use a dimmer but still desire precise control over your lighting
  • Modern design - a new style of ceiling lights that offers a clean line and modern edge lighting to your space compared to your standard 2 x 2 ft. led panel light perfect for contemporary spaces in your home, office, ceiling grid, basement, garage, shop, and more use with a 0-10-volt led dimmer for constant personalized control throughout the day
  • CONTINUOUS LIGHT - Built with an astounding 50,000 hours of lifetime which means you won't need a replacement for years!
  • Each LED integrated lights use slim frame edge lit lighting which offers a unique appearance while also providing uniform light distribution. With it's thin and eye-catching design, these light panels will complement any modern space.
  • Reliable lighting - each panel led kit provides quality residential and commercial lighting with the 5 cct color temperature adjustable switch and 3-wattage selectable switch located on the included junction box
  • Enjoy a 2 x 2 led light fixture with a damp rating for reliability, DLC premium for efficiency, ic air tight insulation contact safe and etl listed, 100v to 277-volt hardwire capable, and backed by a 5 year warranty
Replaces LR24185

2X2 FRAME PANEL 5CCT & 3 WATTAGE SELECTABLE LR24164

6500K - CCT - LR24164 - LR24185
